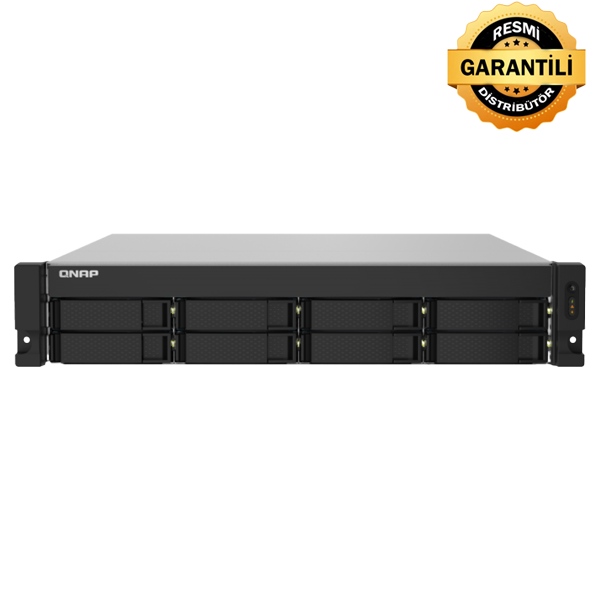

QNAP TS-832PXU-RP-4G 8 Yuvalı RACK NAS ÜNİTESİ (Resmi Distribütör Garantili)

QNAP TS-832PXU-RP-4G 8 Yuvalı RACK NAS ÜNİTESİ

CPU

AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

+

Encryption Engine

+

System Memory

4 GB UDIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (1 x 16 GB)

Memory Slot

1 x UDIMM DDR4

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

8 x 3.5" SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

+

M.2 Slot

Optional via a PCIe adapter

SSD Cache Acceleration Support

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (also support 10M)

10 Gigabit Ethernet Port

  2 x 10GbE SFP+

Wake on LAN (WOL)

Only the 2.5GbE port

Jumbo Frame

  +

PCIe Slot

1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.

USB 3.2 Gen 1 port

  4

Form Factor

2U Rackmount

LED Indicators

   HDD 1-8, Status, LAN, Stornage expansio

Buttons

Power, Reset

Dimensions (HxWxD)

   69 × 482 × 534 mm

Weight (Net)

10.94 Kg

Weight (Gross)

   16.87 Kg

Operating temperature

 0 - 40 °C (32°F - 104°F)

Storage Temperature

  -20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

   250W (x2) PSU, 100 - 240V

Power Consumption: Operating Mode, Typical

69.191 W
Tested with drives fully populated.

Fan

   2 x 70mm, 12VDC

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

700
